The Class CC fuse is the smallest 600 volt 200000 AIR. Ratings Volts 600 Vac 300 Vdc 12 to 2-810 A 20-30 A 150 Vdc 3-15 A Amps 12-30 A IR 200 kA Vac RMS Sym.

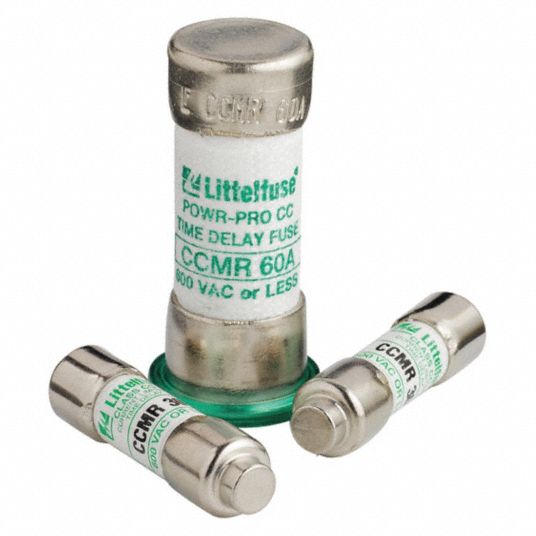

Littelfuse Littelfuse Ul Class Cc Fuse Time Delay 15 A Ccmr 1 1 2 In L X 13 32 In Dia Fuse Size 486k57 Ccmr015 Grainger

Class CC fuses are current limiting fuses with rejection tips on the bottoms to prevent them from being used in holders not rated similarly.

. Current ratings range from 0A to 30A and the voltage rating is 600VAC. Interrupts all available overcurrents within its interrupt rating. Class CC fuses are available with DC ratings.

714 rows Fuse type. A branch circuit fuse having 600V a 200kA interrupting rating and overall dimensions of 1332 x 112. Rejection type fuse fits both standard and rejection-style holders.

Interrupts all available overcurrents within its interrupt rating. Class CC fuses are available with DC ratings. Three types of Class CC dual element fuses specifically designed to protect different types of components.

A Current-Limiting Fuse meets the following three conditions. Class K fuses are not permitted to be labeled Current Limiting because there is no rejec-tion feature as required by NEC Article 240-60B. Satisfies requirements of IEC 60529 for IP-20 finger safe rating and provides TYPE 2 no damage protection for motor starters when sized properly.

These non-renewable fuses are current-limiting and intended for the protection of components sensitive to short-time overloads non-inductive loads and short-circuit protection of motor circuits. FNQ-R fuses can be sized according to NEC and UL requirements and still allow the high inrush currents with significantly more time- delay than the UL minimum value of 12 seconds at 200 for Class CC fuses. Get the Job Done With the Most Dedicated Team Around.

Compared to other UL Listed fuses Class CC dual element fuses are the most current limiting rating for rating. It is the worlds first finger-safe fuse with the smallest installed footprint of any power class fuse including Class J CC T and R fuses. Current ratings range from 0A to 30A with a voltage rating of 600VAC DC ratings are also available.

Class CC J T R and L UL248 Branch Circuit Type Fuses. When used in conjunction with Class CC J T R and L UL248 Branch Circuit Type Fuses. 12 rows Class CC Midget 30A.

Current ratings range from 0A to 30A and the voltage rating is 600VAC. Fuse approved for branch circuit protection. Same Dimensions and Physically interchangeable with UL Class H fuse holders.

20 kA Vdc Agency information UL Listed Class CC Std. Cc ccmr time-delay 600 02 - 30 200k 300k 250 250 300 500 02 - 2 45 - 10. Class CC current-limiting time-delay fuses.

For Sweep 2 IR5kA Default Value Branch Circuit Fuses UL489 Circuit Breakers UL98 Fusible Disconnect Switches UL98 Non-Fusible Disconnect. Provide superior protection in a fraction. Time Delay fuses are required to hold 500 current rating for a minimum of ten seconds.

FNQ-R fuses can be sized according to NEC and UL rq u im n tsad lo whg c. Class CC fuses. A Current-Limiting Fuse meets the following three conditions.

Class CC fuses are current limiting fuses with rejection tips on the bottoms to prevent them from being used in holders not rated similarly. Bussmann Littelfuse and Mersen offer various version of the type CC fuse. Small transformer protection control power transformers KLDR series time-delay fuses designed to withstand the high magnetizing.

The Class CC FNQ-R Limitron fuse meets the needs of control circuit transformer protection. Motor protection CCMR series. Ad Find Deals on class cc fuse in Electrical on Amazon.

UL Fuse Classification Chart. Ad Millions of Items on One Easy-to-Use Site with Outstanding Customer Service. Time-delay 12 seconds minimum at 200 of rated current.

The Class CC fuse is UL Listed under UL248-4 Class CC and CSA Certified. 248-4 Guide JDDZ File E4273. We Are Committed to Making Your Job Easier - Shop our Endless Aisle.

The Class CC FNQ-R Limitron fuse meets the needs of control circuit transformer protection. Fast-acting fuse helps prevent equipment damage caused by short-circuit events. 50HP or less 480V Combination Rating is used for Sweep 1.

Class CC non-renewable fuses are current-limiting and intended for the protection of components sensitive to short-time overloads noninductive loads and short-circuit protection of motor circuits. These non-renewable fuses are current-limiting and intended for the protection of components sensitive to short-time overloads noninductive loads and short-circuit protection of motor circuits. 600 VAC DC Optional-Non-renewable.

Fuse class and selection chart ul class littelfuse series overload characteristics ac ratings dc ratings recommended fuse blocks and fuse holders fuse series page numbers voltage volts current amperes. Dual-element time-delay fuses specifically designed to protect motor circuits up to 40 HP. Time delay is optional for Class K fuses.

The Bussmann uses the Low-Peak Limitron and CC-Tron brand names for its Class CC fuses. Their design incorporates a rejection feature that allows them to be inserted into rejection fuse holders and fuse blocks that reject all lower voltage lower interrupting rating 1332 x 112 fuses.
